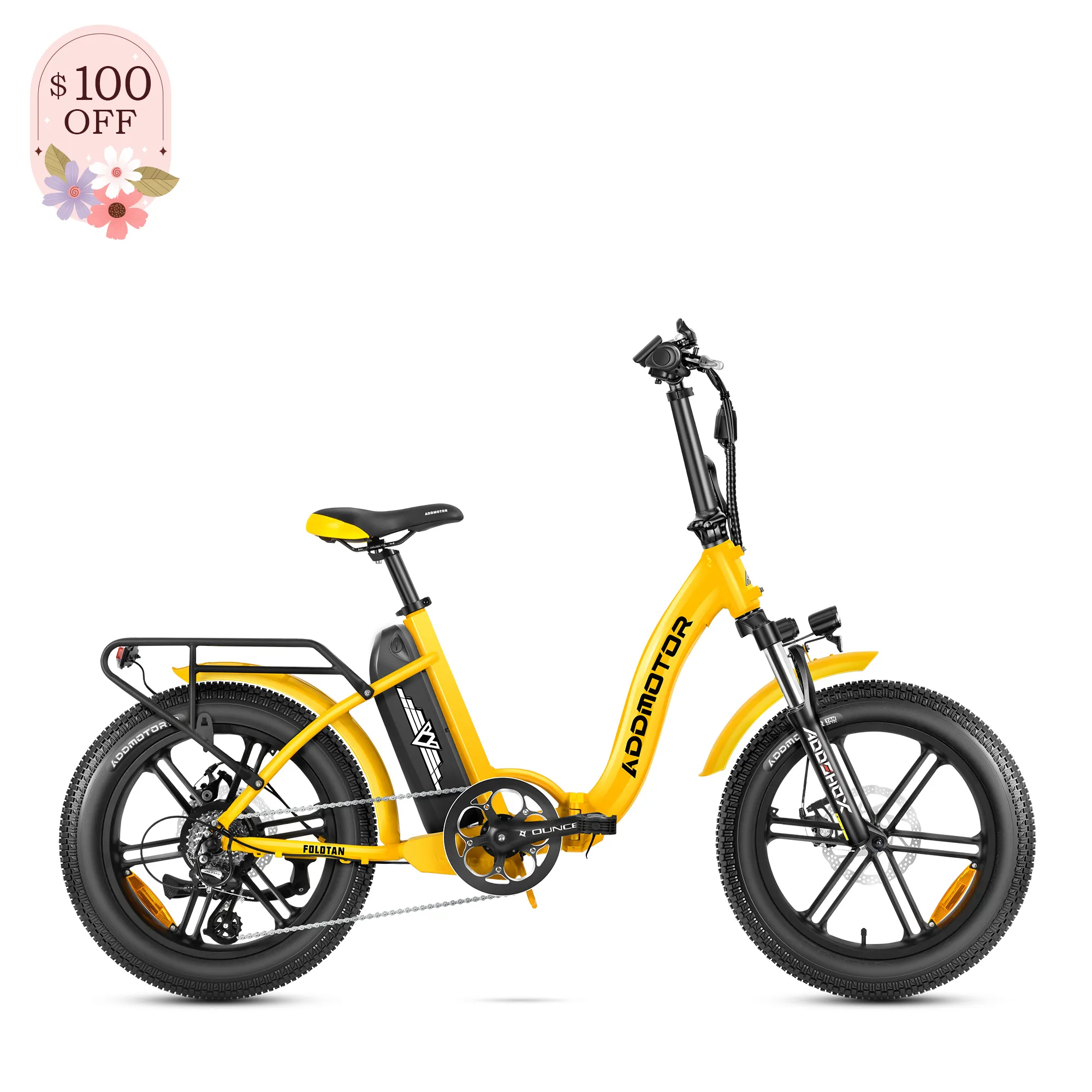

M-140 R7 Folding E-Bike

(11 Reviews)
Price:

    Please select the information you wantX
  • Color:
    Estate Blue
    Yellow
    Black
Quantity:
-
+
I agree to the AddMotor terms of purchase
48V*750w
Rear Hub Brushless Motor
Up to 65+
Miles per Charge(Estimate)
48V*16Ah
Panasonic Lithium-ion Battery
280lbs
Payload Capacity

Fun Features Fun Features
Fun Features

Measurements Measurements
Measurements

The Most Comfortable Folding E-Bike

The MOTAN M-140 R7 fat tire step-thru integrated wheel folding electric bike is merely wonderful. It's an excellent choice for you who wants an electric bike that is portable, affordable, and powerful enough to handle a wide range of use. The collapsible top tube, folding frame, and pedal make it portable easily and quickly fold down to store in your car, under your desk at work, or anywhere you will use it. Seamlessly connect from car to the woods or park, from home to the metro and toward the office.




750w Integrated Wheel Motor

With 750w at your disposal, the high-speed brushless rear-mounted hub motor folding electric bike can help you conquer the most rugged terrains easily.

16Ah Panasonic Battery Pack

Rechargeable and removable 16Ah long-lasting Panasonic lithium battery is equipped on this folding electric bike that will give you enough juice to go long distances.

7-Speed, Cassette 14-28 Tooth

The M-140 R7 features a 7 Speed Shimano Altus Derailleur. A wider range of gearing at your disposal means more torque for treacherous uphill climbs and maintain pedal authority at top speed.

80MM Travel Addshox Front Fork

With preload-adjustable, the front fork gives you a more smoother and comfortable riding experience.

Strong Step-thru Folding Frame

The folding electric bike features a low step-through frame design for easy mounting and dismounting, making it less challenging for some riders, suit a wider range of riders.

Integrated Headlight

Powered using the main battery pack and controlled by the display.

Integrated Brake Taillight

Powered using the main battery pack and features brake light functionality that is activated any time the brakes are applied.

Detachable Rear Rack, Full-Cover Fenders

You can use the electric folding bike to carry cargo, or mount a child seat and bring your kids along for the ride, or cruising with your puppy. Full-cover fenders keep your pants dry and clean.

Technical specs
+Electronics
Battery
48V*16Ah Lithium Battery Panasonic Cells, Charging Time 6-7 Hours Rated For 800 Charge Cycles
Motor
Addmotor 48V*750W Integrated Wheel Motor (Rear-Mounted Geared Hub)
Display
Addmotor 5 Inch LCD Display with USB Port
Throttle
Variable Speed Control - 1/2 Twist Throttle
Controller
Addmotor 25A Controller
Headlight/Taillight
Powered by Main Battery and Controlled by Display
Integrated Wiring
Water-Resistant Connectors and Wiring Harness
Charger
2.5A US Standard Smart Charger
+Components
Flame
6061 Aluminum Alloy Frame
Front Fork
Addshox Spring Suspension Fork, 80-95mm of Travel, Adjustment and Lockout
Brake lever
Tektro Mechanical EL555-RT / EL550-RS
Rotors
Tektro MD-M300 180mm F/R
Chain
KMC Rust Resistant Chain
Tires
Kenda 20'' x 4.0'' Fat Tires
Chain Puller
Shimano 7 Speeds / ALTUS M310
Handlebar
Black Aluminum Folding Handlebar
Pedal
Aluminum Black Folding Pedal
Saddle
Addmotor Padded Comfortable Saddle
Seat Post
Quick Release 30CM
Rear Rack
Detachable Sturdy Alloy Rack
Measurement
Benefit from the adjustable stem and low-step-through frame, the folding electric bike fit for a wide range rider whose height between 5'2'' and 6'3''.

①Total Length
68 ''
②Wheelbase
45''
③Maximum Seat Height
37''
④Minimum Seat Height
31''
⑤Stand Over Height
15''
⑥Minimum Handlebar Height
46''
⑦Maximum Handlebar Height
50.5''
⑧Seat Tube
16''
⑨Reach
12.5''
Folded Up
44*21*29''
Rear Rack
15*6.5''
Bike Weight(Include Battery)
73lbs
